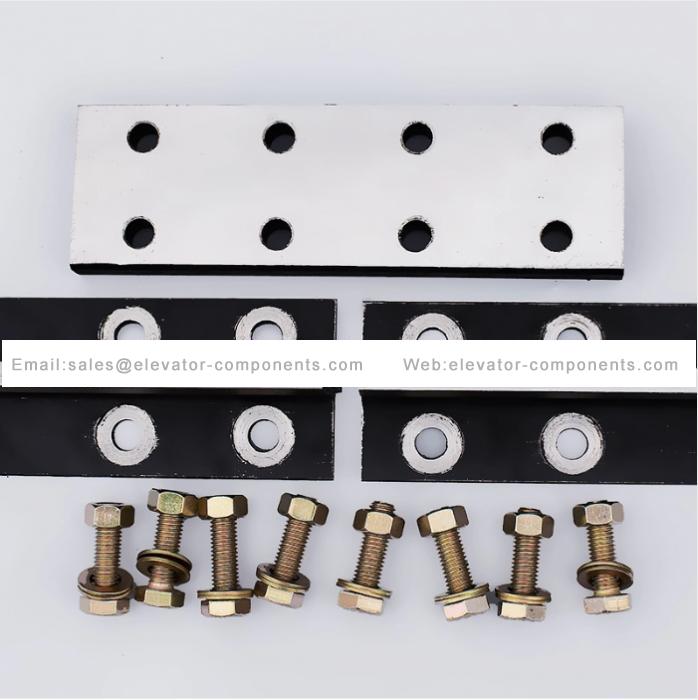

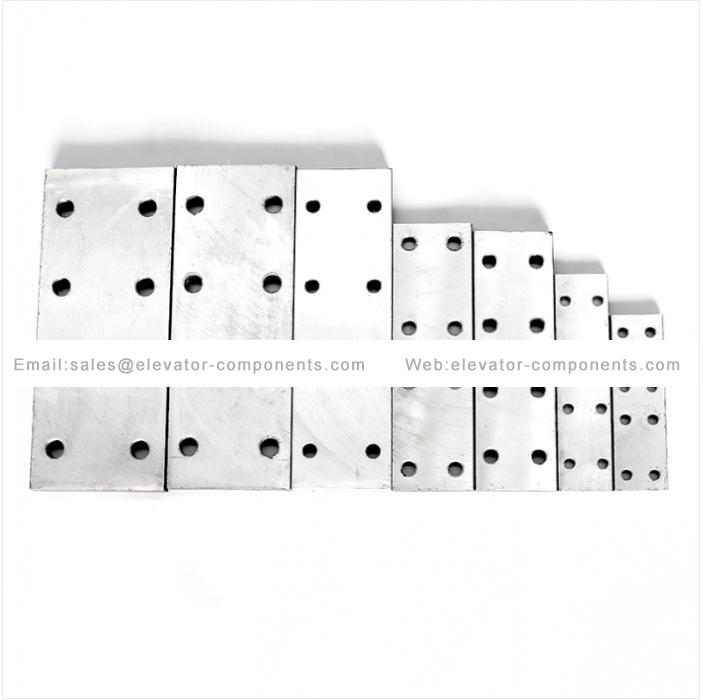

| Name | Elevator Components Rail Fishplate T50/T75/T78/T89/T90/T114/T127 |
| Product Type: | elevator parts |
| Availability: | 5000pcs |
| Certificates: | ISO9001 |
| Warranty-Time: | 1 year |
| MOQ: | 1pcs |
| Payment: | TT |
| Delivery time: | 2-3 days after payment |
Product Description

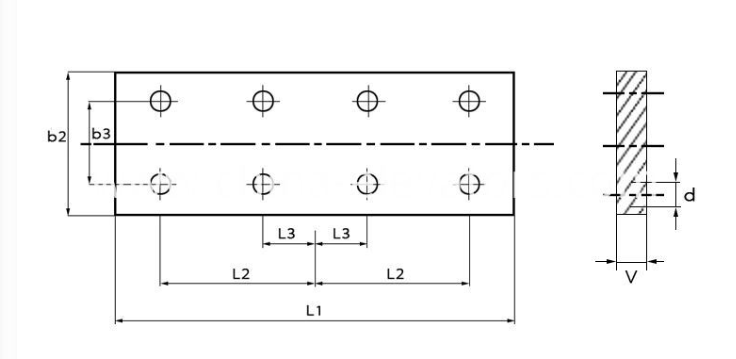

Datasheet of Guide Rail Fishplate unit of measurement: mm / tolerance: 0.2mm | ||||||||||
CEP Part# | Rail Type | d | k2 | b2 | b3 | L1 | L2 | L3 | V | h3 |
GRF-UN-45 | T45/A | 9 | 50 | 25 | 160 | 65 | 15 | 8 | ||
GRF-UN-50 | T50/A | 9 | 50 | 30 | 200 | 75 | 25 | 8 | ||
GRF-UN-70 | T70-1/B | 13 | 70 | 42 | 250 | 105 | 25 | 8.5 | ||
GRF-UN-75 | T75-3/B | 13 | 75 | 43 | 240 | 90 | 30 | 8.5 | ||
GRF-UN-78 | T78/B | 13 | 75 | 43 | 240 | 90 | 30 | 8.5 | ||
GRF-UN-89 | T89/B | 13 | 90 | 57.2 | 305 | 114.3 | 38.1 | 13 | ||
GRF-UN-90 | T90/B | 13 | 90 | 57.2 | 305 | 114.3 | 38.1 | 13 | ||
GRF-UN-114 | T114/B | 17 | 120 | 70 | 305 | 114.3 | 38.1 | 17 | ||
GRF-UN-127 | T127-2/B | 17 | 130 | 79.4 | 305 | 114.3 | 38.1 | 17 | ||
GRF-UN-5 | TK5 | 12 | 10 | 87 | 53 | 350 | 150 | 50 | 4 | 56 |
GRF-UN-5A | TK5A | 12 | 10 | 78 | 45 | 200 | 75 | 25 | 4 | 56 |
