Name | Laser Corrector for Elevator Guide Rail Installation Parts |
Product Type: | elevator parts |
Availability: | 5000pcs |
Certificates: | ISO9001 |
Warranty-Time: | 1 year |
MOQ: | 1pcs |
Payment: | TT |
Delivery time: | 2-3 days after payment |
Product Description
Laser Detector for Elevator Guide Rail Coplanarity

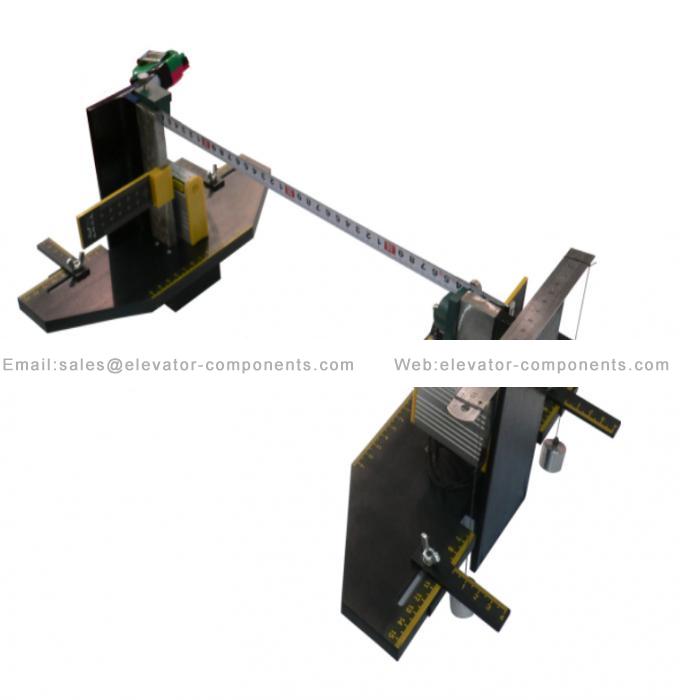

Laser Corrector for Elevator Guide Rail Installation
Laser Digital Detector for Straightness and Torsion Resistance of Elevator Guide Rail

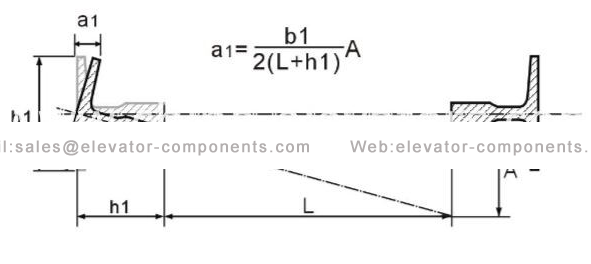

Computational Formula of Guide Rail Offset
Adjustment for Guide Rail Distortion | |||||
offset A(mm) | adjusted dose a1 (mm) | ||||
L=1680 | L=1750 | ||||
T75 (b1=75.h1=62) | T89 (b1=89.h1=62) | T90 (b1=90.h1=75) | T114 (b1=114.h1=89) | T127 (b1=127.h1=88.9) | |
1 | 0.02 | 0.03 | 0.03 | 0.03 | 0.04 |
5 | 0.11 | 0.13 | 0.13 | 0.16 | 0.18 |
7 | 0.15 | 0.18 | 0.18 | 0.22 | 0.24 |
9 | 0.19 | 0.23 | 0.23 | 0.28 | 0.31 |
11 | 0.24 | 0.28 | 0.28 | 0.34 | 0.38 |
15 | 0.32 | 0.38 | 0.39 | 0.47 | 0.52 |
20 | 0.43 | 0.51 | 0.52 | 0.62 | 0.69 |
One Set of Laser Corrector for Elevator Guide Rail Installation
Included
one pair of Set Rule for Elevator Guide Rail Installation
Two pcs of LDR-DL-JS302 Laser Detector for Elevator Guide Rail Coplanarity
1.The largest elevator parts company integrating warehousing with marketing.
2.Leading supplier and expoter in elevator parts industry.
3.We have various brands elevator parts,such as Kone,Otis,LG Sigma,Schindler,Toshiba,Thyssen and so on .
4.With the excellent after-saled service and warranty.
