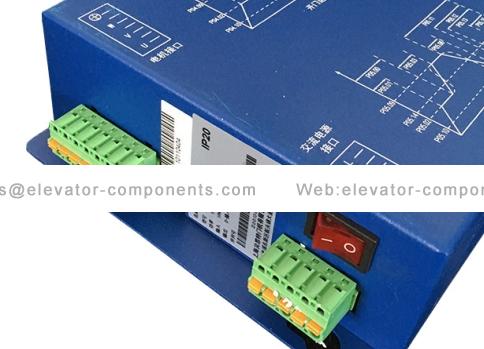

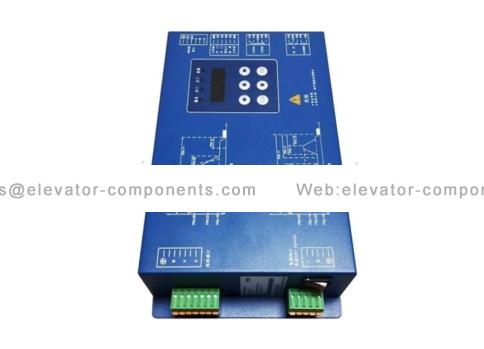

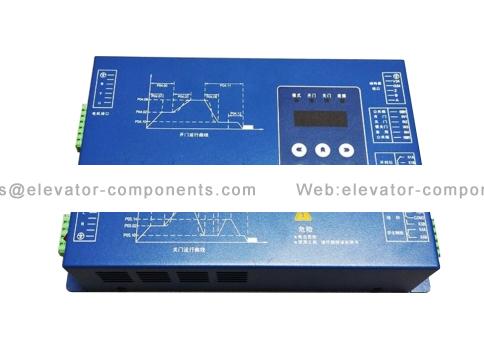

Name | SIGMA Elevator Door Controller BG202-XM-II |
Product Type: | elevator parts |
Availability: | 5000pcs |
Certificates: | ISO9001 |
Warranty-Time: | 1 year |
MOQ: | 1pcs |
Payment: | TT |
Delivery time: | 2-3 days after payment |
Product Description
Project | Sub-project | Description |
Input Power | Rated voltage | Single-phase AC 180V —AC264V |
Rated frequency | 50 Hz,±5%,60Hz±5% | |
Motor | Motor type | BST PMSM: Rated Power: 47W Rated voltage: 125V Rated current: 0.42A Rated torque: 2.3Nm IP protection: IP44 |
Signal input | Open door signal input | 1.Optocoupler isolated inputs; 2.Through the jumper settings, external power supply can be used; External power supply: Common Positive or Common Negative is optional. Rated load DC24V (50mA max), no more than 50mA Internal power supply: common emitter and common±10% collector are optional mode. 3.Signal priority from high to low as: I.Nudging signal II.open door signal III.close door signal IV.Reserved |
Close door signal input | ||
Nudging signal input | ||
Reserved input | ||
Signal output | Open limit signal output | 1. Contact max. Capacity: AC250V/2A, DC30V/1A; inductive load require derating. |
Close limit signal output | 2.Open limit signal and Close limit signal use a common terminal(normal open and normal close are optional); 3.Normal Open or Normal Close are optional for Obstruction signal | |
Obstruction signal output | ||
SGS signal output | ||
Encoder interface | Encoder type | ABZ encoder |
Debugger | Panel(Standard) | Status monitor and parameter revision |
Status LED | MODE | Four LEDs lying in the debugger panel show the drive status. MODE: When the light is on, it shows that the motor is running. When the light is off, it shows that the motor is not at work. OPEN: When the light is on, it shows that the motor is running in opening direction. CLOSE: When the light is on, it shows that the motor is running in closing direction. FAULT: When the light is twinkling, it means Fault happens |
OPEN | ||
CLOSE | ||
FAULT | ||
Communication | RS485 | Reserved |
Operating mode | I0 mode, Panel mode, demo mode | |
Fault reset | some automatically reset, some can't reset until power off | |
self-study | Motor self-study, door width self-study | |
fault | Over-voltage protection, under-voltage protection, over temperature protection, overload protection, over-torque error, self-learning fault, lack of phase protection, EEPROM read and write error alarm, ADC detection error, ADC offset error, belt slip error , encoder fault alarm, communication error alarm, temperature sensor failure, the DC bus voltage detection errors, SPM module fault, obstruction fault, open door fault, close door fault, overspeed protection. | |
