| Name | MONADRIVE Elevator Permanent Magnet Synchronous Gearless Traction Machine MDD710 |
| Product Type: | elevator component |
| Availability: | 6000pcs |
| Certificates: | ISO9001 |
| Warranty-Time: | 1 year |
| MOQ: | 1pcs |
| Payment: | TT |
| Delivery time: | 2-3 days after payment |
Product Description
MONADRIVE Elevator Permanent Magnet Synchronous Gearless Traction Machine MDD710
MONADRIVE elevator traction machine MDD710, Permanent magnet synchronous gearless traction machine.

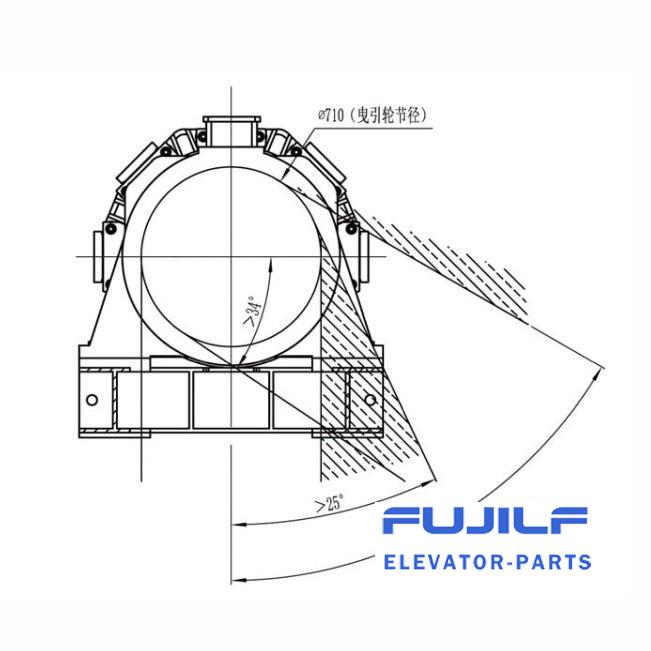

The angle of wire rope shall be within the range shown as above, while avoiding the shadow part.
Product parameter (specification)
Voltage | 380V | Roping | 1:1 |
EIv.L oad | (1600~2000)kg | Elv.Speed | (5.0~8.0)m/s |
Sheave Diam | 710mm | Duty | S5-40% |
IP Code | IP41 | Max. Static Load | 40000kg |
Ins.Class | F | Weight | 3500kg |
Brake | DC110V 5x2.2A | ||
1.The largest elevator parts company integrating warehousing with marketing.
2.Leading supplier and expoter in elevator parts industry.
3.We have various brands elevator parts,such as Kone,Otis,LG Sigma,Schindler,Toshiba,Thyssen and so on .
4.With the excellent after-saled service and warranty.
