| Name | MONADRIVE Elevator Traction Machine MDD410 Lift Machine |
| Product Type: | elevator component |
| Availability: | 6000pcs |
| Certificates: | ISO9001 |
| Warranty-Time: | 1 year |
| MOQ: | 1pcs |
| Payment: | TT |
| Delivery time: | 2-3 days after payment |
Product Description

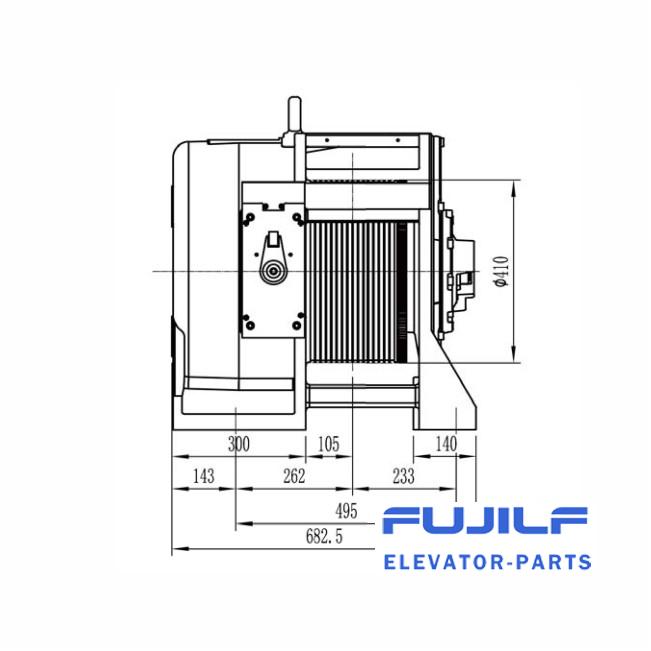

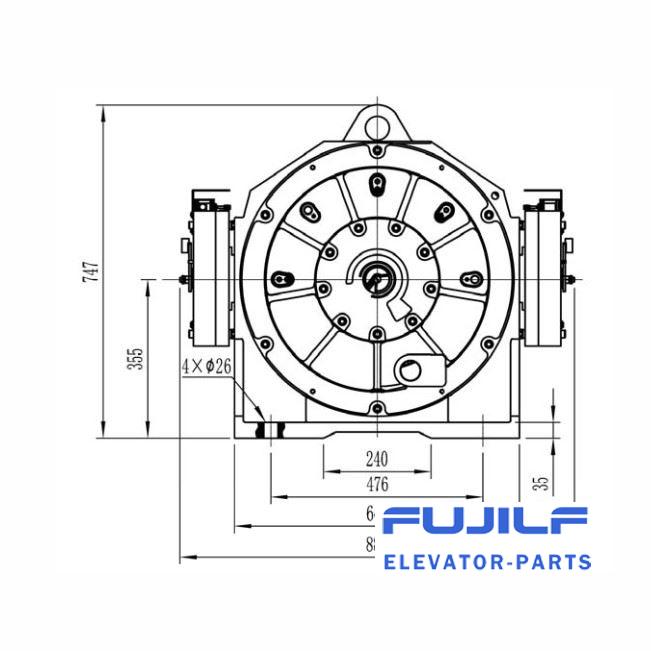

MONADRIVE Elevator Traction Machine MDD410 Lift Machine
MONADRIVE elevator traction machine MDD410, Permanent magnet synchronous gearless traction machine.

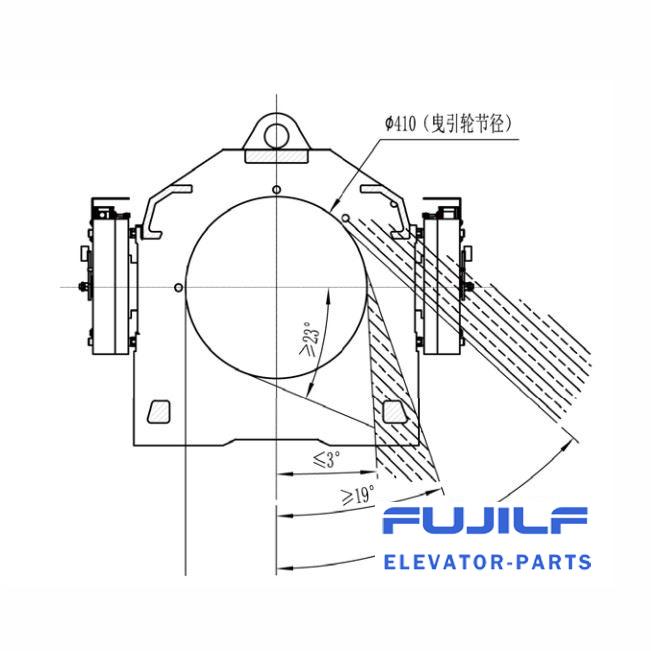

The angle of wire rope shall be within the range shown as above, while avoiding the shadow part.
Product parameter (specification)
Voltage | 380V | Roping | 2:1 |
EIv.L oad | (1350~1600)kg | Elv.Speed | (2.5~4.0)m/s |
Sheave Diam | 410mm | Duty | S5-40% |
IP Code | IP41 | Max. Static Load | 13500kg |
Ins.Class | F | Weight | 800kg |
Brake | DC110V 2x1.6A | ||
1.The largest elevator parts company integrating warehousing with marketing.
2.Leading supplier and expoter in elevator parts industry.
3.We have various brands elevator parts,such as Kone,Otis,LG Sigma,Schindler,Toshiba,Thyssen and so on .
4.With the excellent after-saled service and warranty.
