| Name | MONADRIVE Machine Roomless Elevator Traction Machine MONA400 |
| Product Type: | elevator component |
| Availability: | 6000pcs |
| Certificates: | ISO9001 |
| Warranty-Time: | 1 year |
| MOQ: | 1pcs |
| Payment: | TT |
| Delivery time: | 2-3 days after payment |
Product Description
MONADRIVE Machine Roomless Elevator Traction Machine MONA400
MONADRIVE elevator traction machine MONA400, Permanent magnet synchronous gearless traction machine.
The machine can also be used for machine roomless, The above is recommended value of cut angle,it's optional according to practical condition.
Product parameter (specification)
Voltage | 380V | Roping | 2:1 |
EIv.L oad | (800~1600)kg | Elv.Speed | (1.0~2.5)m/s |

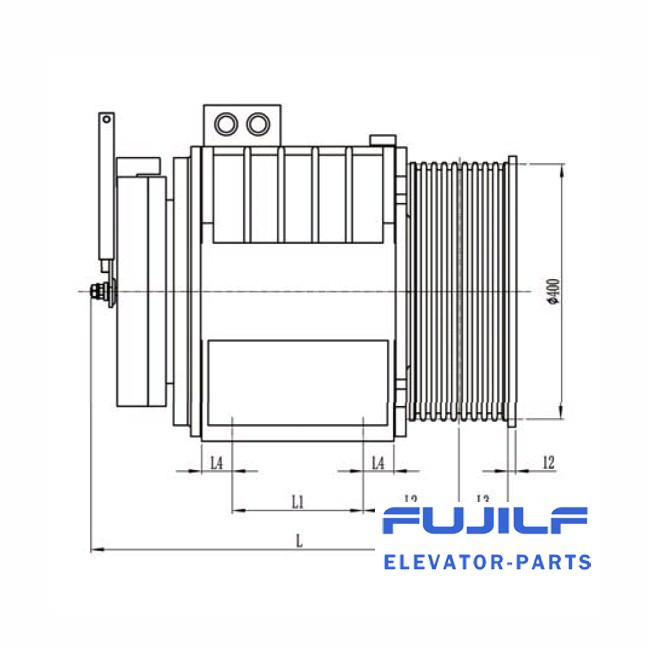

Sheave Diam | 400mm | Duty | S5-40% |
IP Code | IP41 | Max. Static Load | 5500kg |
Ins.Class | F | Weight | 480kg |
Brake | DC110V 2x2.0A | ||
