Name | SW-3 Elevator Door Sensor Magnetic and other non- contact switch FUJILF Lift Spare Parts |
Product Type: | escalator spareparts |
Availability: | 5000pcs |
Certificates: | ISO9001 |
Warranty-Time: | 1 year |
MOQ: | 1pcs |
Payment: | TT |
Delivery time: | 2-3 days after payment |
Product Description
SW-3 Elevator Door Sensor Magnetic and other non- contact switch FUJILF Lift Spare Parts
SW-3 For lift door sensor, building Magnetic and other non- contact switch;
Mono-stable,normally open mode/Bi-stable,normally open mode
Screw fixation;
Choice of sensitivity, cable length . Seal design is applicable for hard working surroundings.
Triggered from dead ahead;
In the magnetic field, the magnetic switch in the pull- in state, and maintains this state until
leaving the magnetic field to come back to the initial state of disconnect state.
Type: Mono-stable,normally open mode/Bi-stable,normally open mode
Triggered from dead ahead;
Application in elevator car level for position sensing,
Switch is with dustproof and explosion-proof plastic case,
foreign-made reed switch with high life;

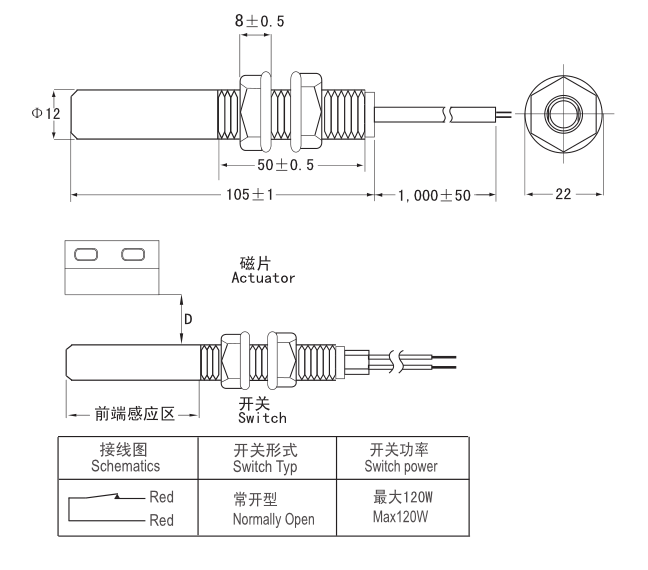

SW-3(A/B) ELEVATOR PROXIMITY SWITCH | |||||
Contact | NormalOpen | Mounting | Screwfixation | ||
Material | Nylon | Wiring | Doubleinsulation cable | ||
Switching | Vac-max | 200 | Operating principle | Magnetactuation | |
Switching | A-max | 1.0 | Switching frequency | Hz-max | 500 |
Operatingtemperature | ℃ | -25-78 | Shock | G-max | 50g/11ms |
StorageTemperature | ℃ | -25-90 | Vibration | G-max | 35g |
Switchingtime | ms-max. | 0.8 | Mechanical Life | millions | |
Releasetime | ms-max | 0.1 | Electrical life | millions | |
SW-3AMono-stable N/O an SW-3B Bi-stable N/O switch |
