| Name | High Speed Roller Guide Shoe for Elevators 6m/s Spare Parts |
| Product Type: | elevator component |
| Availability: | 6000pcs |
| Certificates: | ISO9001 |
| Warranty-Time: | 1 year |
| MOQ: | 1pcs |
| Payment: | TT |
| Delivery time: | 2-3 days after payment |
Product Description
High Speed Roller Guide Shoe for Elevators ≤6.0m/s
High Speed Elevator Roller Guide Shoe for Cabin Side & CWT Side

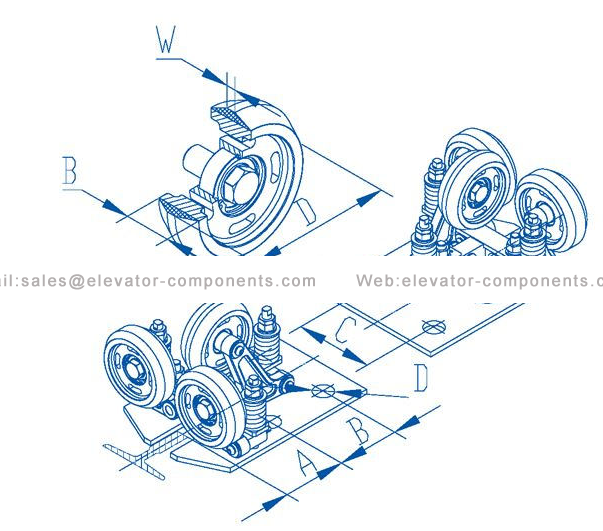

No. | Part# | Style | Installation interface (mm) | Diameter of Roller | W | B | |||
A | B | C | D | ||||||
1 | RGS-HH-L70-4 | Elastic | 80 | 80 | 100 | 4-Φ24 | 70 | 6/15 | 25 |
2 | RGS-HH-L90-4 | 80 | 80 | 100 | 4-Φ24 | 90 | 6/15 | 30 | |
3 | RGS-HH-L140-1 | 80 | 80 | 110 | 4-Φ20 | 140 | 8/15 | 30 | |
4 | RGS-HH-L160-1 | 65 | 90 | 110 | 4-Φ20 | 160 | 6/15 | 30 | |
Part# | Rated Speed | Width of Guide Rail | Diameter of Roller | Normal Load | External Dimensions |
RGS-HH-L70-4 | ≤2.5m/s | 10,16mm | 70mm | 550kg | 235×170×129mm |
RGS-HH-L90-4 | ≤3.0m/s | 10,16mm | 90mm | 800kg | 230×196×150mm |
RGS-HH-L140-1 | ≤4.0m/s | 16mm | 140mm | 800kg | 230×296×210mm |
RGS-HH-L160-1 | ≤6.0m/s | 16mm | 160mm | 1200kg | 215×336×246mm |
1.The largest elevator parts company integrating warehousing with marketing.
2.Leading supplier and expoter in elevator parts industry.
3.We have various brands elevator parts,such as Kone,Otis,LG Sigma,Schindler,Toshiba,Thyssen and so on .
4.With the excellent after-saled service and warranty.
