| Name | Iron Elevator Deflector Sheave Spare Parts 400 |
| Product Type: | elevator spareparts |
| Availability: | 5000pcs |
| Certificates: | ISO9001 |
| Warranty-Time: | 1 year |
| MOQ: | 1pcs |
| Payment: | TT |
| Delivery time: | 2-3 days after payment |
Product Description

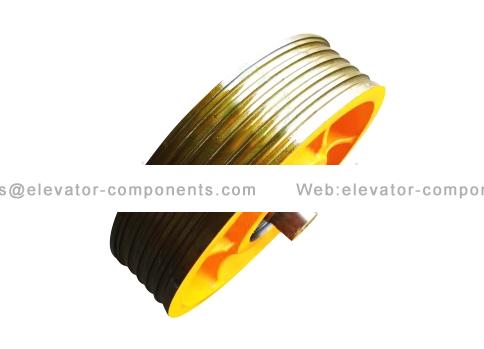

Elevator Sheave
1.Cast iron and MC Nylon types
2.Various specifications of elevator sheave
Elevator pulley sheave, Elevator traction sheave, Elevator guiding pulley, Elevator guiding sheave, Elevator couterweight sheave, Elevator CW sheave,Traction Sheave
FUJILF has been supplying various types and specifications of elevator deflector sheave with different Dia 240mm,320mm,400mm,480mm,520mm,640mm and different materials such as MC Nylon and Cast Iron pulley sheave for elevator traction system as per customers’ requirement.
FUJILF elevator deflector sheave Model
| FUJILF-Model | Diameter | Aperture | Number of slots | Rope | Slot Pitch | Thickness | Thickness | Rated load | Bearing |
| D | E | N | d | P | H | h | Q |
| 400-01 | φ400 | 110 | 3 | 8 | 12 | 60 | 80 | ≤1000KG | 6212 |
| 400-02 | 3 | 8 | 13 | ||||||
| 400-03 | 3 | 10 | 15 | ||||||
| 400-04 | 3 | 10 | 16 | ||||||
| 400-05 | 4 | 8 | 12 | ||||||
| 400-06 | 4 | 8 | 13 | ||||||
| 400-07 | 4 | 10 | 15 | 70 | 95 | ||||
| 400-08 | 4 | 10 | 16 | ||||||
| 400-09 | 5 | 8 | 12 | ||||||
| 400-10 | 5 | 8 | 13 | ||||||
| 400-11 | φ130 | 5 | 10 | 15 | 90 | 95 | ≤1600KG | 6312 | |
| 400-12 | 5 | 10 | 16 | ||||||
| 400-13 | 6 | 8 | 12 | ||||||
| 400-14 | 6 | 8 | 13 | ||||||
| 400-15 | 6 | 10 | 15 | 105 | 95 | ||||
| 400-16 | 6 | 10 | 16 | ||||||
| 400-17 | 7 | 8 | 12 | ||||||
| 400-18 | 7 | 8 | 13 | ||||||
| 400-19 | φ140 | 7 | 10 | 15 | 124 | 120 | ≤2000KG | 6313 | |
| 400-20 | 7 | 10 | 16 | ||||||
| 400-21 | 8 | 8 | 12 | ||||||
| 400-22 | 8 | 8 | 13 | ||||||
| 400-23 | 8 | 10 | 15 | 140 | 120 | ||||
| 400-24 | 8 | 10 | 16 | ||||||
| 400-25 | 9 | 8 | 12 | ||||||
| 400-26 | 9 | 8 | 13 |
1.The largest elevator parts company integrating warehousing with marketing.
2.Leading supplier and expoter in elevator parts industry.
3.We have various brands elevator parts,such as Kone,Otis,LG Sigma,Schindler,Toshiba,Thyssen and so on .
4.With the excellent after-saled service and warranty.
