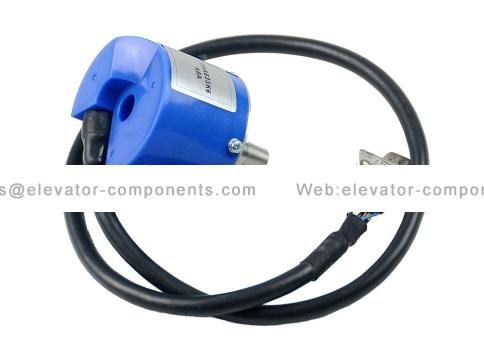

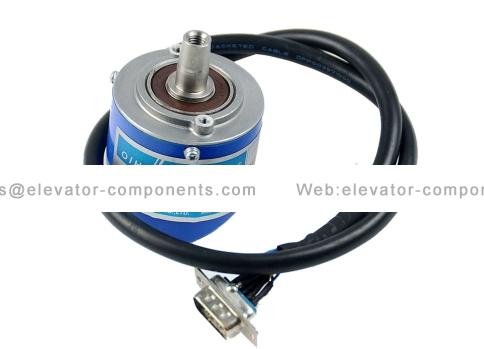

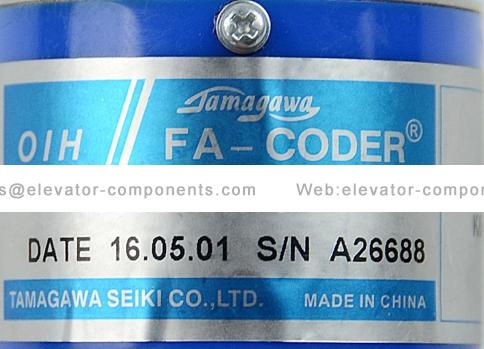

Tamagawa elevator encoder  TS5218N578

How to choose a Tamagawa elevator encoder?

Model No. FOR Elevator Encoder

OIH-□□-□□-□□-□□-□□ v

         1                      2                        3                   4                 5                     6

1.Optical Incremental Hollow shaft Encoder
2.Outside Diameter Size:φ48mm,φ60mm,φ100mm,Motor Shaft Diameter : φ 8mm
3.Resolution:1024, 4096, 5000, 6000, 8190, 10000C/T
4.Output form:
   l:Line Driver, P:Push Pull, C:Open collector, S:Sincos
5.Output phase:

3 ⇒A,B,Z

6 ⇒ A,B,Z,u,v,w

7 ⇒ A,B,Z,F0,F1,F2,F3

6.Supply Voltage: 5V,12V,15V

Three types for elevator encoder

♦ OIH 48 Series: TS52□□N5□□

                                                             1                       2
1: Resolution



2. Pole:       00 ： Pole／4 ,  10 ： Pole／6 ,30 ： Pole／8

● Outside Diameter:φ 48mm / Motor Shaft Diameter : φ 8mm
● Hollow shaft available up to φ 9.525 (3/8inch) 　
● Resolution : 1,000 ～ 12,000C/T
● Easy to attach

♦ OIH 60 Series: TS52□□N4□□

                                                            1                        2
1.Resolution

2.Pole:       00 ： Pole／4 ,  10 ： Pole／6 ,30 ： Pole／8
● Outside Diameter:φ 48mm / Motor Shaft Diameter : φ 8mm
● Hollow shaft available up to φ 20 　
● Resolution : 1,000 ～ 8,192C/T
● Easy to attach

♦ OIH 100Series: TS52□□N1□□

Resolution

1.The largest elevator parts company integrating warehousing with marketing.

2.Leading supplier and expoter in elevator parts industry.

3.We have various brands elevator parts,such as Kone,Otis,LG Sigma,Schindler,Toshiba,Thyssen and so on .

4.With the excellent after-saled service and warranty.
