| Name | Monarch Elevator Display Board MCTC-HCB-H Elevator PCB Parts |
| Product Type: | elevator spare parts |
| Availability: | 4000pcs |
| Certificates: | ISO9001 |
| Warranty-Time: | 1 year |
| MOQ: | 1pcs |
| Payment: | TT |
| Delivery time: | 2-3 days after payment |
Product Description

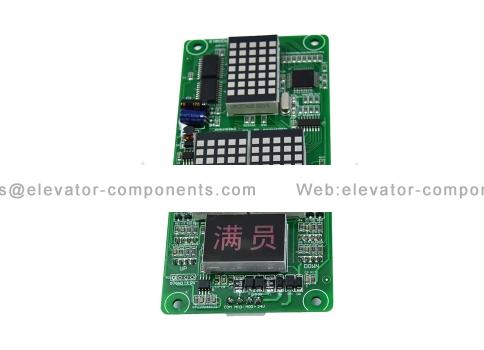

Monarch Elevator Display Board MCTC-HCB-H Elevator PCB Parts

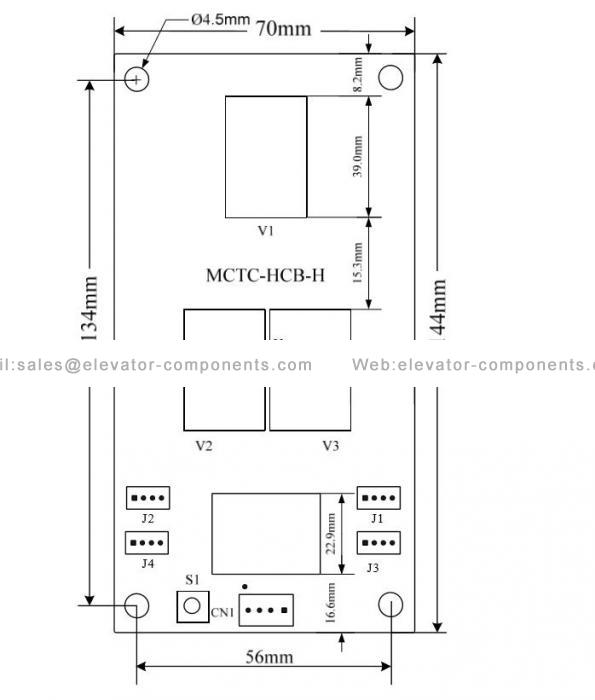

Monarch elevator display board MCTC-HCB-H Terminal
| Terminal | Function | ||||||
| J1 | Lift-locking switch interface，2、3 is for the switching value wiring，4 is up-arrival light outpu | ||||||
| J2 | Fire-emergency switch interface | ||||||
| 2、3 is for the switching value wiring， | |||||||
| 4 is down-arrival light output | |||||||
| J3 | up call button interface | ||||||
| 2、3 is for the input switching value wiring， | |||||||
| 1、4 is for the power wiring to control the button light | |||||||
| J4 | Down call button interface | ||||||
| 2、3 is for the input switching value wiring | |||||||
| 1、4 is for the power wiring to control the button light | |||||||
| CN1 | Modbus communication and power line terminal，4PIN interface， | ||||||
| 2、3 for Modbus communication wire，1、4 for power wiring | |||||||
| SIA | Push to save the floor info | ||||||
