Name | MONADRIVE Elevator Synchronous Gearless Traction Machine MCB100 |
Product Type: | elevator component |
Availability: | 6000pcs |
Certificates: | ISO9001 |
Warranty-Time: | 1 year |
MOQ: | 1pcs |
Payment: | TT |
Delivery time: | 2-3 days after payment |
Product Description

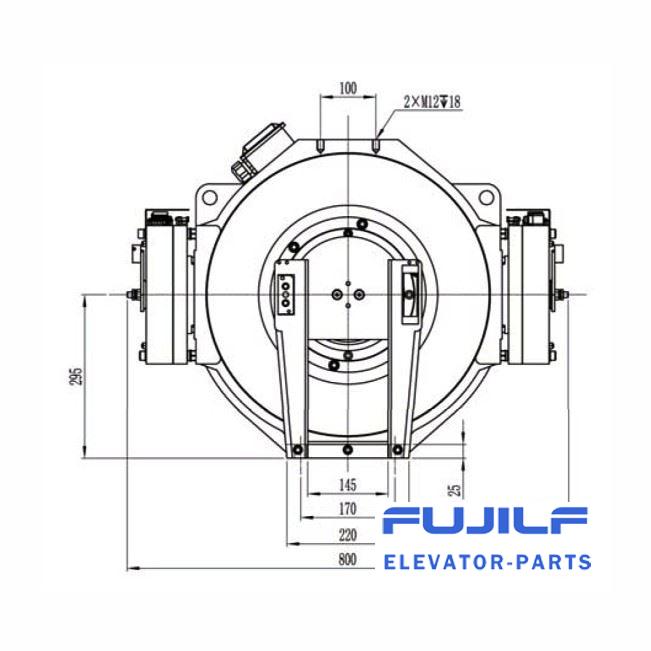

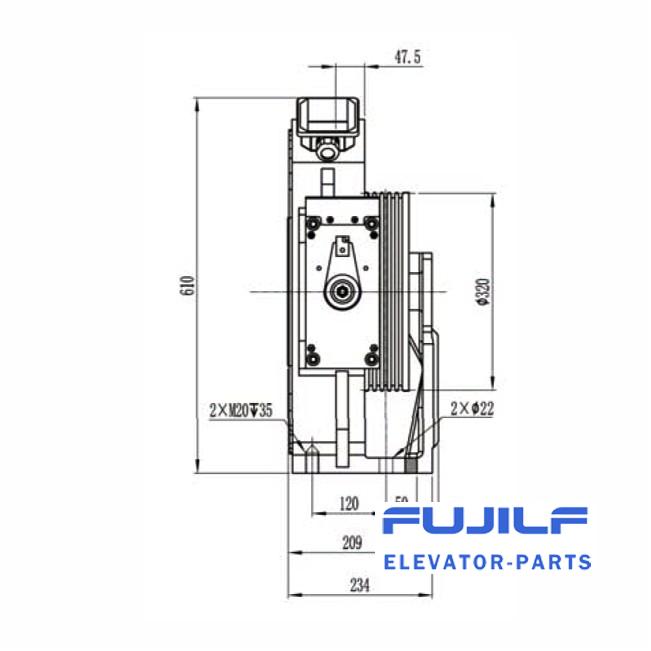

MONADRIVE Elevator Synchronous Gearless Traction Machine MCB100
MONADRIVE elevator traction machine MCB100, Permanent magnet synchronous gearless traction machine.
The machine is used for machine roomless, Standard configuration:ABZ encoder,Optional configuration:sin&cos encoder.
Product parameter (specification)
Voltage | 380V | Roping | 2:1 |
EIv.L oad | (320~800)kg | Elv.Speed | (0.5~1.75)m/s |
Sheave Diam | 320mm | Duty | S5-40% |
IP Code | IP41 | Max. Static Load | 2500kg |
Ins.Class | F | Weight | 210kg |
Brake | DC110V 2x1.3A |
1.The largest elevator parts company integrating warehousing with marketing.
2.Leading supplier and expoter in elevator parts industry.
3.We have various brands elevator parts,such as Kone,Otis,LG Sigma,Schindler,Toshiba,Thyssen and so on .
4.With the excellent after-saled service and warranty.
