Name | MONADRIVE Elevator Traction Machine MONA320 Elevator Components |
Product Type: | elevator component |
Availability: | 6000pcs |
Certificates: | ISO9001 |
Warranty-Time: | 1 year |
MOQ: | 1pcs |
Payment: | TT |
Delivery time: | 2-3 days after payment |
Product Description

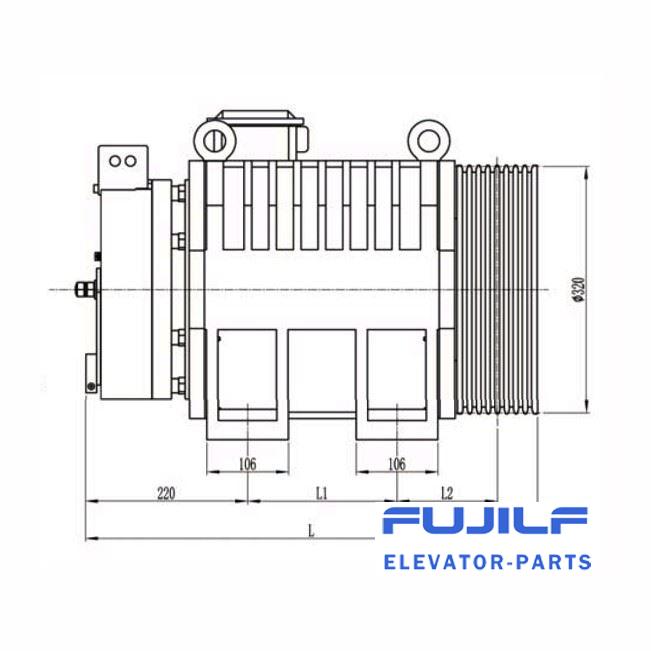

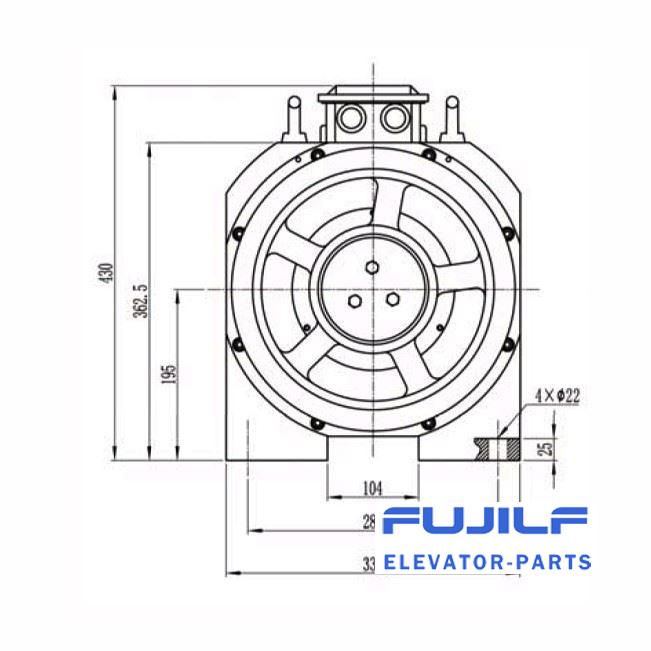

MONADRIVE Elevator Traction Machine MONA320 Elevator Components
MONADRIVE elevator traction machine MONA320, Permanent magnet synchronous gearless traction machine.
The machine can also be used for machine roomless, The above is recommended value of cut angle,it's optional according to practical condition.
Product parameter (specification)
Voltage | 380V | Roping | 2:1 |
EIv.L oad | (630~1150)kg | Elv.Speed | (0.5~1.75)m/s |
Sheave Diam | 320mm | Duty | S5-40% |
IP Code | IP41 | Max. Static Load | 3500kg |
Ins.Class | F | Weight | 300kg |
Brake | DC110V 2.6A |
