| Name | MONADRIVE Permanent Magnet Synchronous Gearless Elevator Traction Machine MCK100 |
| Product Type: | elevator component |
| Availability: | 6000pcs |
| Certificates: | ISO9001 |
| Warranty-Time: | 1 year |
| MOQ: | 1pcs |
| Payment: | TT |
| Delivery time: | 2-3 days after payment |
Product Description

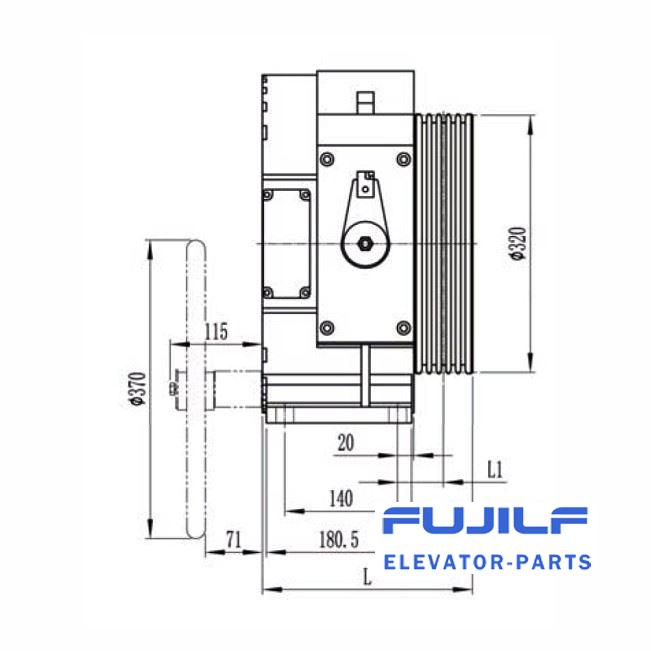

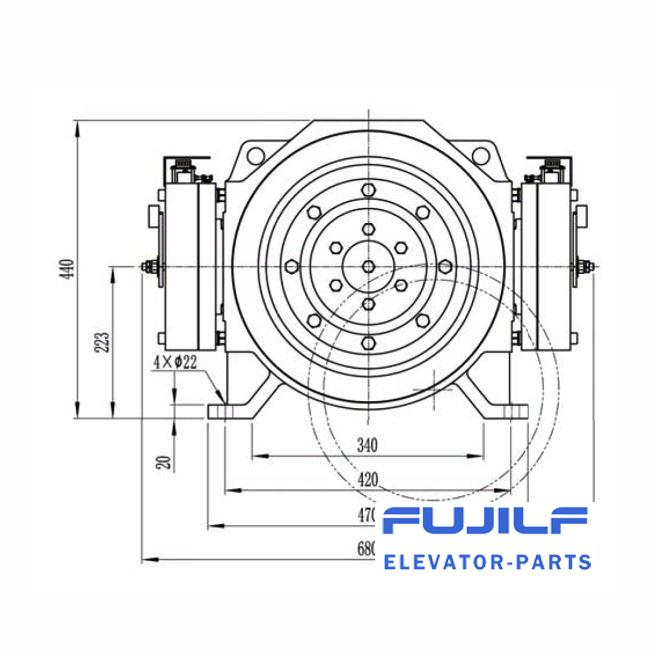

MONADRIVE Permanent Magnet Synchronous Gearless Elevator Traction Machine MCK100
MONADRIVE elevator traction machine MCK100, Permanent magnet synchronous gearless traction machine.
The machine can also be used for machine roomless, The above is recommended value of cut angle,it's optional according to practical condition.
Product parameter (specification)
Voltage | 380V | Roping | 2:1 |
EIv.L oad | (320~630)kg | Elv.Speed | (0.5~1.75)m/s |
Sheave Diam | 320mm | Duty | S5-40% |
IP Code | IP41 | Max. Static Load | 2500kg |
Ins.Class | F | Weight | 250kg |
Brake | DC110V 2x1.3A | ||
