Name | Elevator Center Opening VVVF Door Operator TKP131-H09 CO Door Device |
Product Type: | lift spare parts |
Availability: | 5000pcs |
Certificates: | ISO9001 |
Warranty-Time: | 1 year |
MOQ: | 1pcs |
Payment: | TT |
Delivery time: | 2-3 days after payment |
Product Description
Elevator Center Opening VVVF Door Operator TKP131-H09 CO Door Device
Elevator Center Opening Vvvf Door Operator TKP131-H09
1.Using PM motor, large rotary torque, high efficiency and energy saving, compact design.
2.Highly smooth operation, achieve the completely closed loop control of the torque, speed and position.
3.Using magnetic encoder.
4.Using sheet metal formed body plus separate guide rail, better loading effect.
5.Using asyn. door clutch, optional car door lock, car frame installation, up to 7m/s.
6.Total door panel weight≤200kg; Voltage:200-250 V, 50 /60 Hz.

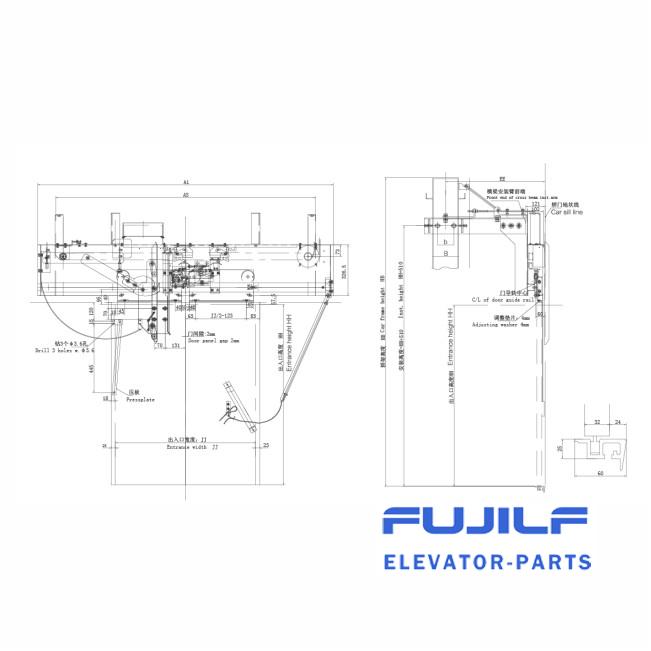

Product parameter (specification)
JJ | 900 | 950 | 1000 | 1050 | 1100 | 1200 |
A1 | 1881 | 1981 | 2081 | 2181 | 2281 | 2481 |
