Name | PV40 56KN 4.5mmx40mm Schindler Elevator Traction Steel Belt |
Product Type: | lift spare parts |
Availability: | 5000pcs |
Certificates: | ISO9001 |
Warranty-Time: | 1 year |
MOQ: | 1pcs |
Payment: | TT |
Delivery time: | 2-3 days after payment |
Product Description

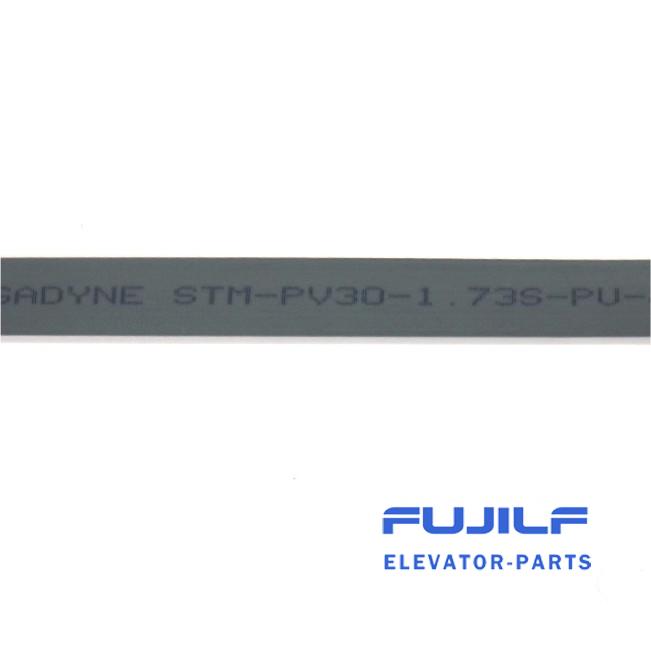

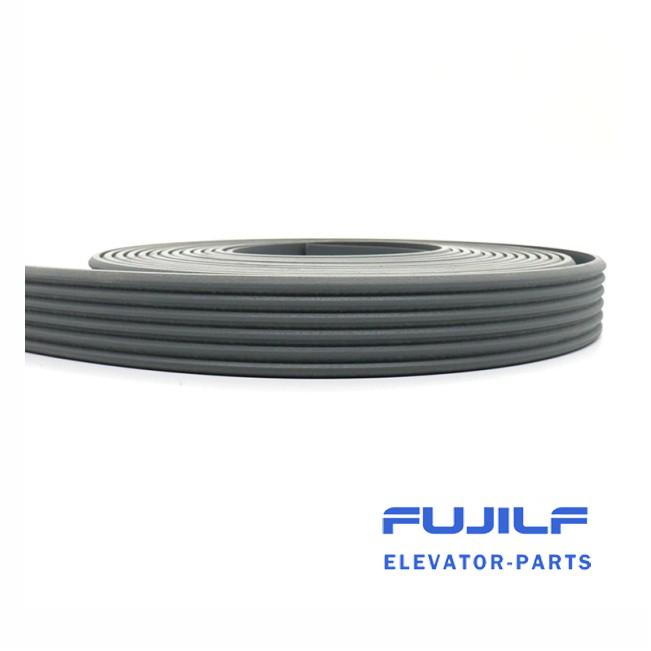

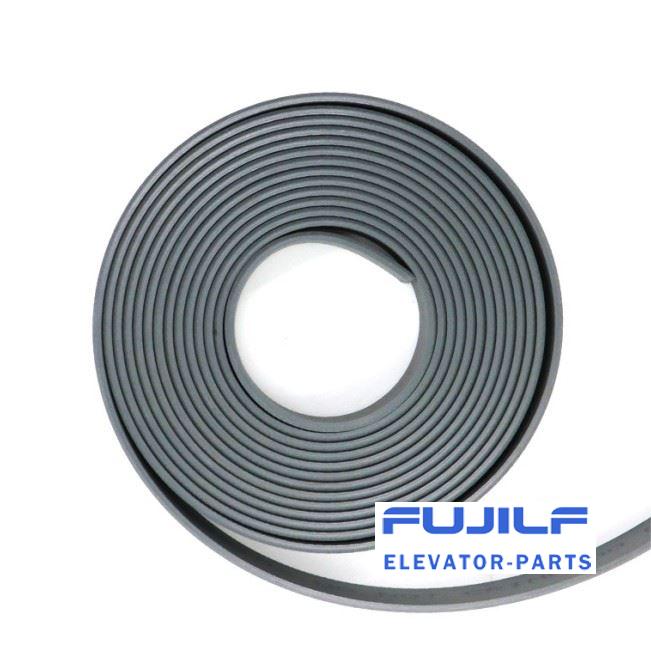

PV40 56KN 4.5mmx40mm Schindler Elevator Traction Steel Belt
Schindler Elevator traction steel belt, 3300 3600 5500 elevator traction steel belt, four models PV30(30mm) PV40(40mm) PV50(50mm) PV60(60mm), This product is a customized product, which is cut according to the number of meters. When replacing the steel belt, the whole set must be replaced together, and the warranty is 1 year. There is no warranty for a single replacement, which is prone to accidents.
Product parameter (specification)
Part number | Specification | Strength | Outlooking |
PV30 | 4.5mm*30mm | 32KN | Grey with groove |
PV40 | 4.5mm*40mm | 56KN | Grey with groove |
PV50 | 4.5mm*50mm | 70KN | Grey with groove |
PV60 | 4.5mm*60mm | 84KN | Grey with groove |
