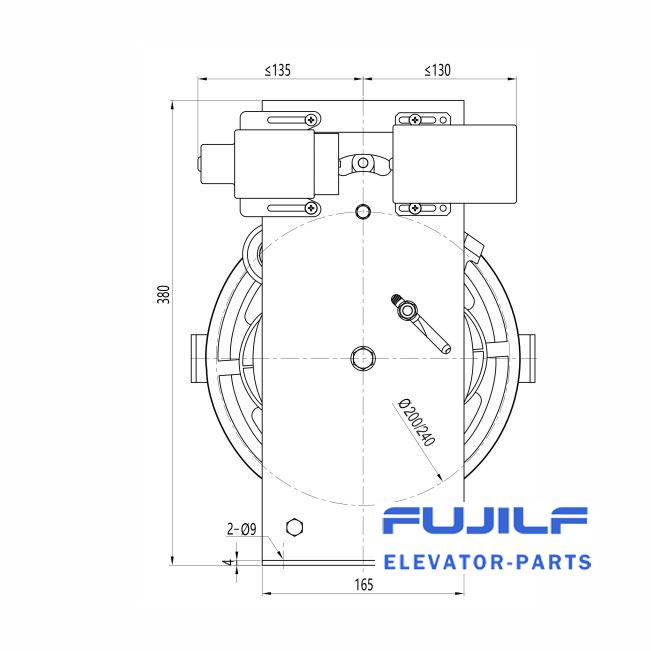

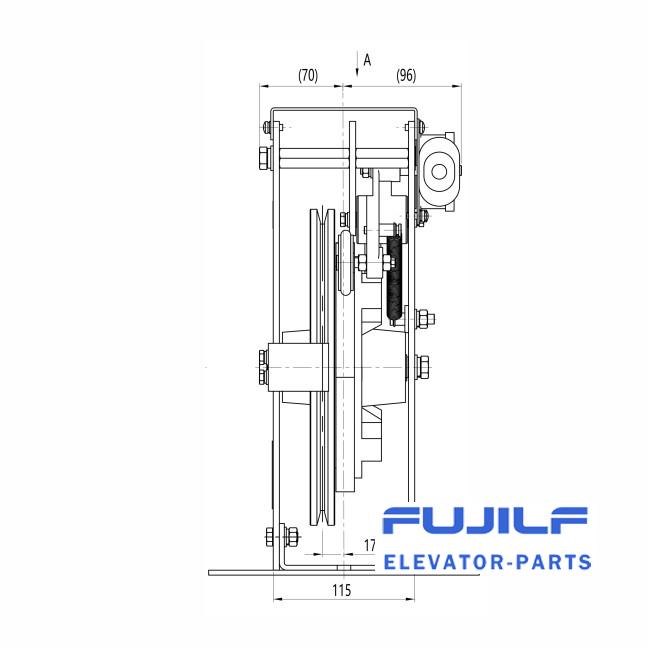

OX-187 Elevator Return Overspeed Governor FUJILF Lift Components

Elevator overspeed governor OX-187, Return Governor.

Covered specifications(Rated speed): ≤0.63m/s; 1.0m/s; 1.5-1.6m/s; 1.75 m/s; 2.0 m/s

Sheave diameter: φ200mm; φ240mm; φ300mm;

Wire rope diameter: φ6mm,φ8mm (Depending on the rope round state)

Pulling force: ≥500N

Tension device: standard OX-200, optional OX-300

Power supply voltage: standard AC220V, optional DC24V(Velocity≤1.0m/s);

Work location: Car side or counterweight side

Upward control: permanent-magnet synchronous traction machine brake, counterweight safety gear, two-way security clamp

Downward control: safety gear

Remote control: operation and electrical switch reset can be tested electrically; mechanical mechanism can reset automatically

Product parameter (specification)
