| Name | LD-HC-L6 Elevator Polyurethane Buffer FUJILF Elevator Spare Parts |
| Product Type: | elevator component |
| Availability: | 6000pcs |
| Certificates: | ISO9001 |
| Warranty-Time: | 1 year |
| MOQ: | 1pcs |
| Payment: | TT |
| Delivery time: | 2-3 days after payment |
Product Description

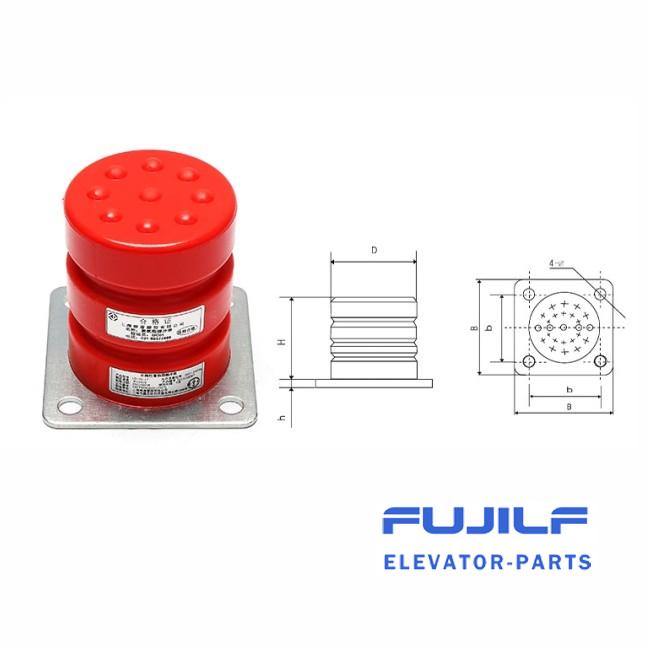

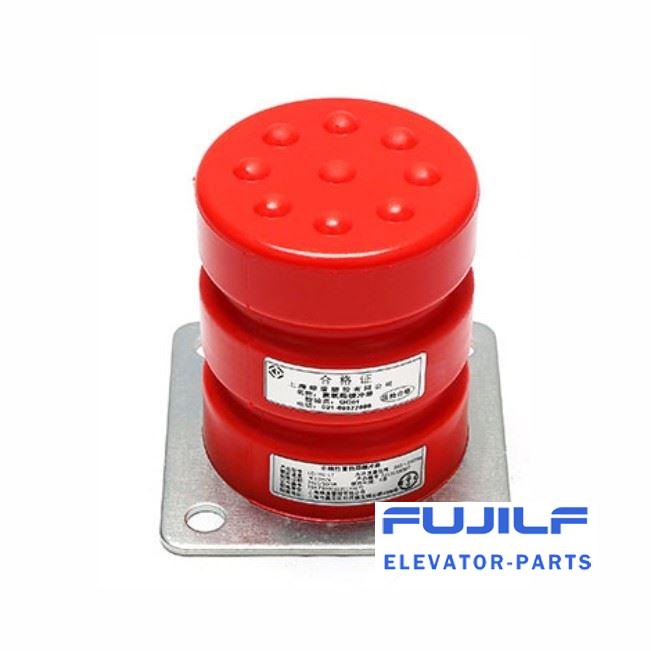

LD-HC-L6 Elevator Polyurethane Buffer FUJILF Elevator Spare Parts

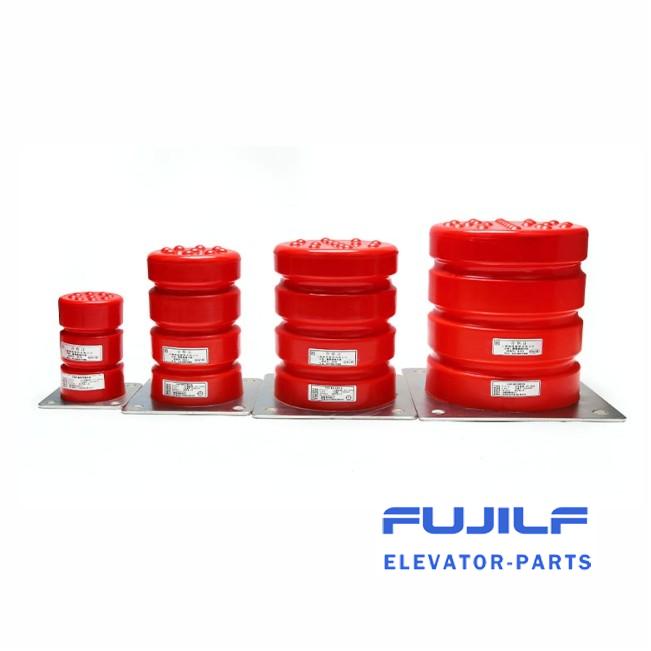

Elevator polyurethane buffer LD-HC-L1~L25.
New polyurethane material, no noise, small specific gravity, simple structure, easy installation and maintenance, good buffering effect,High-strength steel plate integrated base, stable and durable, four-hole fixing is easy to operate, Complete specifications, support customization.
Product parameter (specification)
TYPE | Maximum compression stroke (mm) | Specification (φD*H) | total allowable massB*A (P+Q kg) | Installation size | Rated speed | |||
| FUJILF | B | b | h | ∮ | ≤1.0m/S | |||
LD-HC-L1 | 70 | φ65x 80 | 200~1200 | 95 | 65 | 4 | 12 | ≤1.0m/S |
LD-HC-L2 | 70 | Φ80x 80 | 200~1200 | 108 | 80 | 4 | 12 | ≤1.0m/S |
LD-HC-L3 | 88 | Φ80x 100 | 200~2000 | 108 | 80 | 4 | 12 | ≤1.0m/S |
LD-HC-L4 | 121 | Φ80x 128 | 200~2000 | 108 | 80 | 4 | 12 | ≤1.0m/S |
LD-HC-L5 | 72 | Φ100x 80 | 500~2000 | 128 | 96 | 4 | 14 | ≤1.0m/S |
LD-HC-L6 | 88 | Φ100x 100 | 500~2200 | 128 | 96 | 4 | 14 | ≤1.0m/S |
LD-HC-L7 | 114 | Φ100x 120 | 500~2500 | 128 | 96 | 4 | 14 | ≤1.0m/S |
LD-HC-L8 | 144 | Φ100x 160 | 500~3000 | 128 | 96 | 4 | 14 | ≤1.0m/S |
LD-HC-L9 | 177 | Φ100x 200 | 500~2600 | 128 | 96 | 4 | 14 | ≤1.0m/S |
LD-HC-L10 | 90 | Φ120x 100 | 500~3000 | 160 | 126 | 4 | 14 | ≤1.0m/S |
LD-HC-L11 | 165 | Φ100x 192 | 1000~3500 | 160 | 126 | 4 | 14 | ≤1.0m/S |
LD-HC-L12 | 121 | Φ130x 150 | 800~4800 | 160 | 126 | 4 | 14 | ≤1.0m/S |
1.The largest elevator parts company integrating warehousing with marketing.
2.Leading supplier and expoter in elevator parts industry.
3.We have various brands elevator parts,such as Kone,Otis,LG Sigma,Schindler,Toshiba,Thyssen and so on .
4.With the excellent after-saled service and warranty.
