Name | SW-1 Door Contact Elevator Magnetic Door Switch Door Lock FUJILF Elevator Components |
Product Type: | escalator spareparts |
Availability: | 5000pcs |
Certificates: | ISO9001 |
Warranty-Time: | 1 year |
MOQ: | 1pcs |
Payment: | TT |
Delivery time: | 2-3 days after payment |
Product Description
SW-1 Door Contact Elevator Magnetic Door Switch Door Lock FUJILF Elevator Components
SW-1 Elevator Magnetic switch: cable outlet in the left.,Single column or double column .
Application in elevator car level for position sensing,
Power: 100~120W,voltage: 250VAC/DC,current:3.0A; shock-resistance:50G
Testing distance: 3mm~16mm;
Elevator level bi-stable switch is with dustproof and explosion-proof plastic case,
foreign-made reed switch with high life;Applied on elevator for car position
sensing, throw-over switch, limit switch and position measuring sensor.

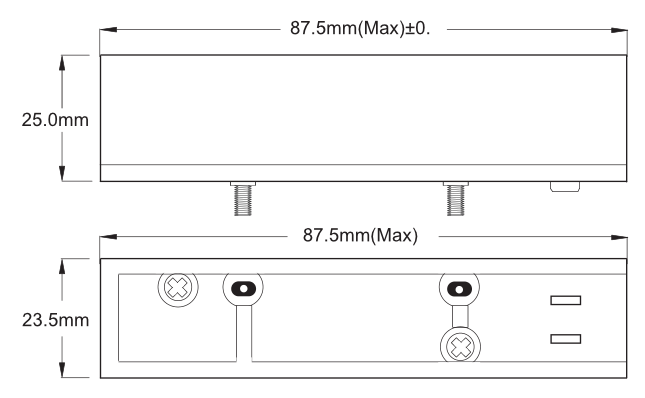

SW-1(S /D) Elevator Magnetic switch | |||||
Switching capacity | Max | 120W/VA | Switching time | Max | 3.5ms |
Switching voltage | Max | 250VAC/DC | Bounce time | Max | 0.5ms |
Switching current | Max | 3A | Release time | Max | 0.2ms |
Carrying current | Max | 5A | Resonant frequency | type | 900Hz |
Dielectric strength | Min | 800VDC | Operating frequency | Max | 100Hz |
Insulation resistance | Min | 10Ohm | Shock 11ms | Max | 50g |
Operating principle | Magnetic | Testing distance | mm | 3-16 | |
Singlecolumn (SW-1S) and double column (SW-1D) for your choice |
1.The largest elevator parts company integrating warehousing with marketing.
2.Leading supplier and expoter in elevator parts industry.
3.We have various brands elevator parts,such as Kone,Otis,LG Sigma,Schindler,Toshiba,Thyssen and so on .
4.With the excellent after-saled service and warranty.
