T114/B Type Guide Rail for Elevator FUJILF Elevator Spare Parts

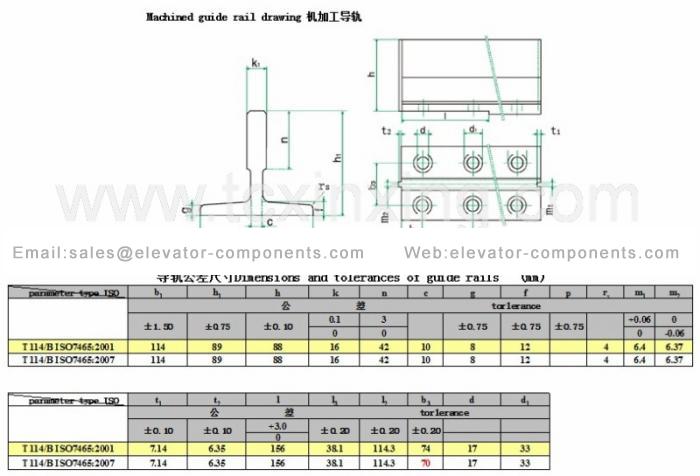

1. T guide rail basic dimensions: 114mm*89mm*16mm
notes: bottom width is 114mm, height is 89mm, top width is 16mm, length is 5meters.
2. Basic dimensions of its matched accessories
fishplate: 305mm*120mm*18mm; clip:18k; screw:M16*50
3. Processing methods: machining
4. A 20` container can hold about 270 pcs of T114/B elevator guide rails without accessories.
5. Packing:
Xinxing standard packing: all types of guide rails are packed in bundles, with protective sheathes protecting both ends and each bundle repacked in blue plastic sheeting.

If you need, we can also pack at your request.

6. Material: all types of guide rails’ material is Q235

7. Our other types of guide rails are as follow,please visit the link for more information.

Cold draw guide rail

T45/A：45mm*45mm*5mm;

T50/A ：50mm*50mm*5mm;

T70/A：70mm*65mm*9mm;
