Name | T75-3/B Elevator Guide Rail FUJILF Elevator Components |
Product Type: | elevator component |
Availability: | 5000pcs |
Certificates: | ISO9001 |
Warranty-Time: | 1 year |
MOQ: | 1pcs |
Payment: | TT |
Delivery time: | 2-3 days after payment |
Product Description
T75-3/B Elevator Guide Rail FUJILF Elevator Spare Parts

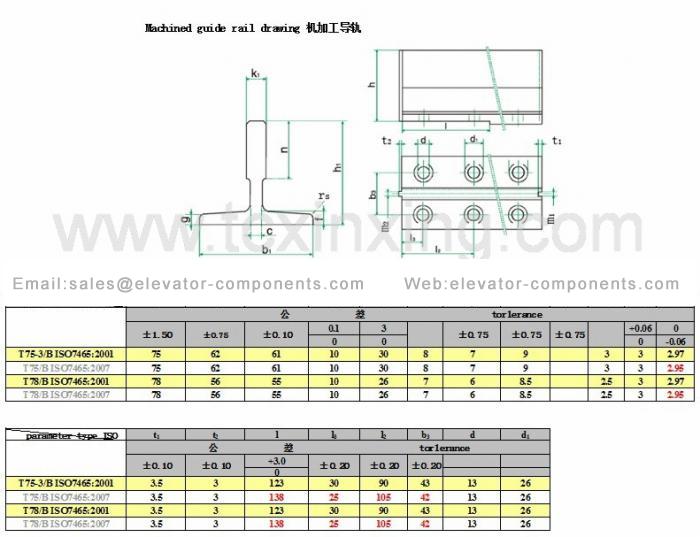

1. Basic elevator rails dimensions: 75mm*62mm*10mm
notes: bottom width is 75mm, height is 62mm, top width is 10mm, length is 5meters.
2. Basic dimensions of guide rail's matched accessories
fishplate: 240mm*75mm*10mm; clip:8k; screw:M12*35
3. Processing methods: machining
4. A 20` container can hold about 520 pcs of T75-3/B elevator guide rails without accessories.
5. Packing:
Xinxing standard packing: all types of guide rails are packed in bundles, with protective sheathes protecting both ends and each bundle repacked in blue plastic sheeting.
If you need, we can also pack at your request.
6.Guide rail material: all types of guide rails’ material is Q235
7. Our other types of guide rails are as follow,please visit the link for more information.
Cold draw guide rail
T45/A:45mm*45mm*5mm;
T50/A :50mm*50mm*5mm;
T70/A:70mm*65mm*9mm;
1.The largest elevator parts company integrating warehousing with marketing.
2.Leading supplier and expoter in elevator parts industry.
3.We have various brands elevator parts,such as Kone,Otis,LG Sigma,Schindler,Toshiba,Thyssen and so on .
4.With the excellent after-saled service and warranty.
