| Name | MRL Elevator Overspeed Governors Bi-directional Spare Parts |
| Product Type: | elevator component |
| Availability: | 6000pcs |
| Certificates: | ISO9001 |
| Warranty-Time: | 1 year |
| MOQ: | 1pcs |
| Payment: | TT |
| Delivery time: | 2-3 days after payment |
Product Description

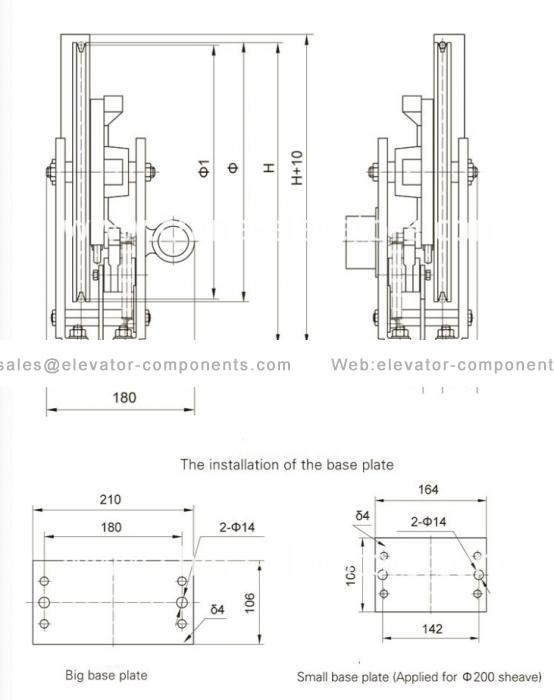

Bi-directional MRL Elevator Overspeed Governors OSR-UD-WXS

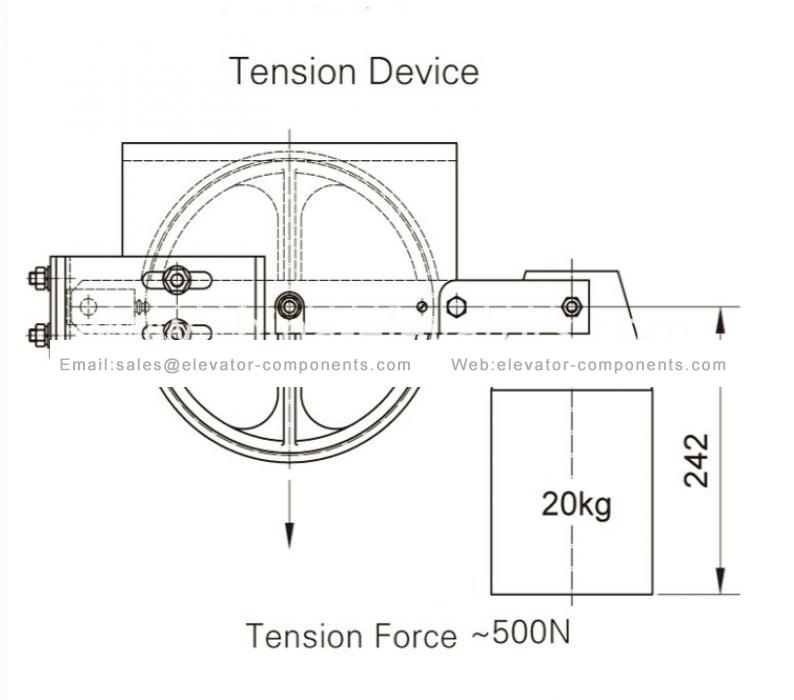

Elevator Speed: 0.4– 2.5m/s Rope Dia.: ø8mm, ø6mm Sheave Dia.: ø200mm, ø250mm, ø300mm MRL ONLY Bi-directional Tension Pulley: as an option at extra cost |
No. | Part No. | Sheave Diameter | Rope Diameter | Rated Speed | Rope Tension Force | Height |
1 | OSR-UD-WXS1 | ø250mm | ø 8mm | 1.0m/s | 1000-3900N | 332mm |
2 | OSR-UD-WXS2 | ø 300mm | ø 8mm | 1.50 m/s | 1000-3900N | 357mm |
3 | OSR-UD-WXS3 | ø 300mm | ø 8mm | 1.75 m/s | 1000-3900N | 357mm |
4 | OSR-UD-WXS4 | ø 250mm | ø 8mm | 0.5 m/s | 1000-3900NN | 332mm |
5 | OSR-UD-WXS5 | ø 200mm | ø 6mm | 1.00 m/s | 1000-2200N | 306mm |
6 | OSR-UD-WXS6 | ø 300mm | ø 8mm | 1.60 m/s | 1000-3900N | 357mm |
7 | OSR-UD-WXS7 | ø 300mm | ø 8mm | 2.0 m/s | 1000-3900N | 357mm |
8 | OSR-UD-WXS8 | ø 300mm | ø 8mm | 2.5 m/s | 1000-3900N | 357mm |
9 | OSR-UD-WXSY | ø 200mm | ø 6mm | 0.40 m/s | 1000-2200N | 306mm |
Sheave | Rope | A | L1 | L | L2 | ||||
T75 | T89/T90 | T114 | T75 | T89/T90 | T114 | ||||
Φ200mm | Φ6mm | 220mm | 225mm | 217-233mm | 207-243mm | 214-266mm | 206-274mm | 218-262mm | ≥400mm |
Φ250mm | Φ8mm | 272mm | 245mm | 237-253mm | 227-263mm | ≥420mm | |||
Φ300mm | 324mm | ≥450mm | |||||||
