| Name | MONADRIVE Elevator Traction Machine MCK300 MRL Parts |
| Product Type: | elevator component |
| Availability: | 6000pcs |
| Certificates: | ISO9001 |
| Warranty-Time: | 1 year |
| MOQ: | 1pcs |
| Payment: | TT |
| Delivery time: | 2-3 days after payment |
Product Description

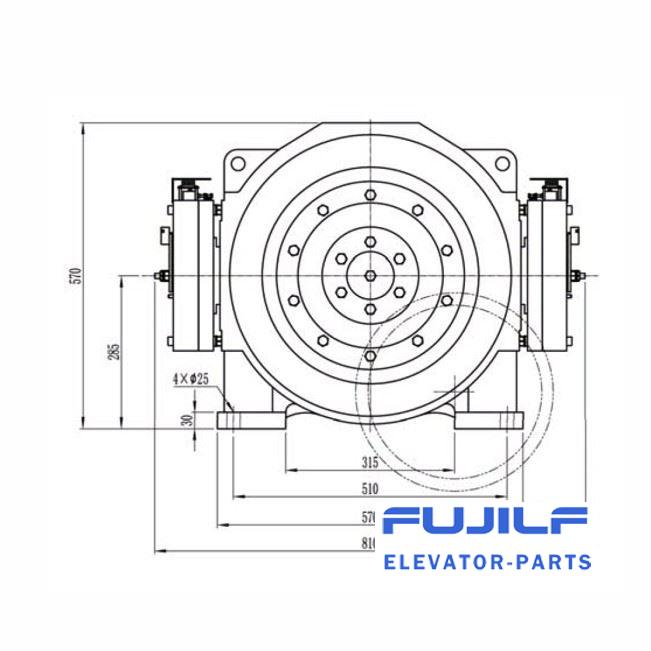

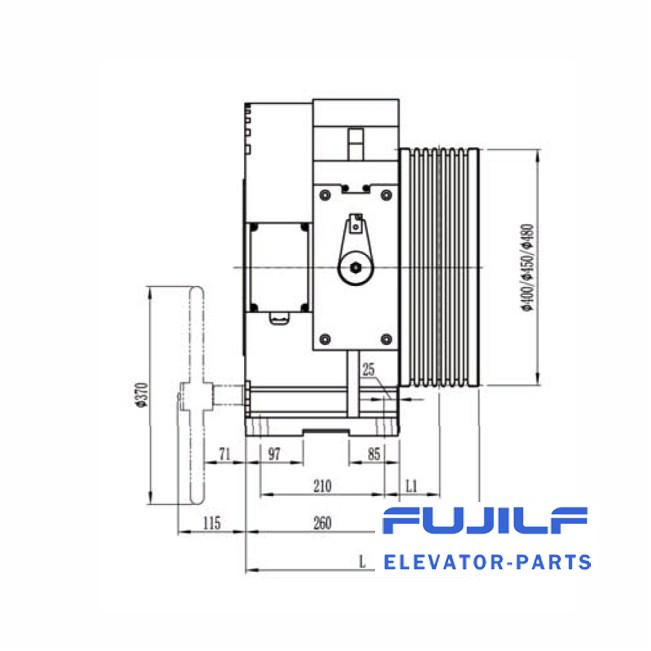

MONADRIVE Elevator Traction Machine MCK300 MRL Parts
MONADRIVE elevator traction machine MCK300, Permanent magnet synchronous gearless traction machine.
The machine can also be used for machine roomless, The above is recommended value of cut angle,it's optional according to practical condition.
Product parameter (specification)
Voltage | 380V | Roping | 2:1 / 4:1 |
EIv.L oad | (1250~1600)kg | Elv.Speed | (0.5~2.5)m/s |
Sheave Diam | 400mm/450mm/480mm | Duty | S5-40% |
IP Code | IP41 | Max. Static Load | 6000kg |
Ins.Class | F | Weight | 520kg |
Brake | DC110V 2x1.6A | ||
1.The largest elevator parts company integrating warehousing with marketing.
2.Leading supplier and expoter in elevator parts industry.
3.We have various brands elevator parts,such as Kone,Otis,LG Sigma,Schindler,Toshiba,Thyssen and so on .
4.With the excellent after-saled service and warranty.
