Name	LD-HC-L22 Elevator Polyurethane Buffer FUJILF Elevator Spare Parts
Product Type:	elevator component
Availability:	6000pcs
Certificates:	ISO9001
Warranty-Time:	1 year
MOQ:	1pcs
Payment:	TT
Delivery time:	2-3 days after payment

Product Description

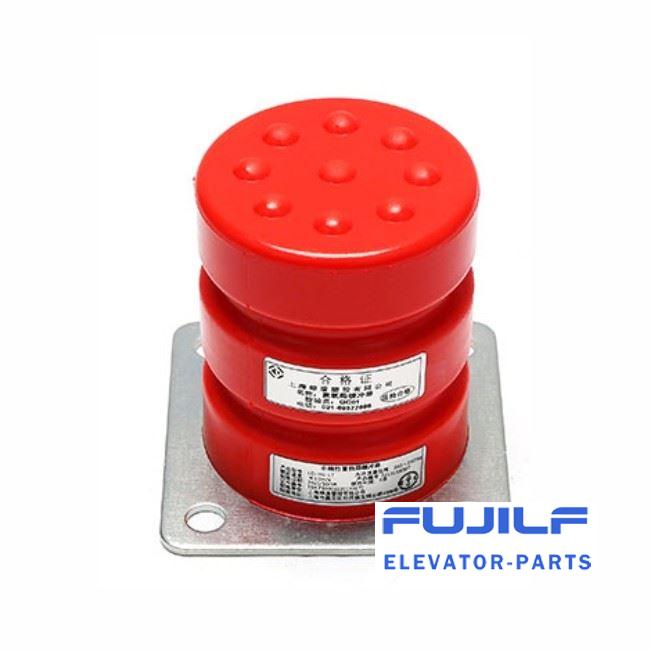

LD-HC-L22 Elevator Polyurethane Buffer FUJILF Elevator Spare Parts

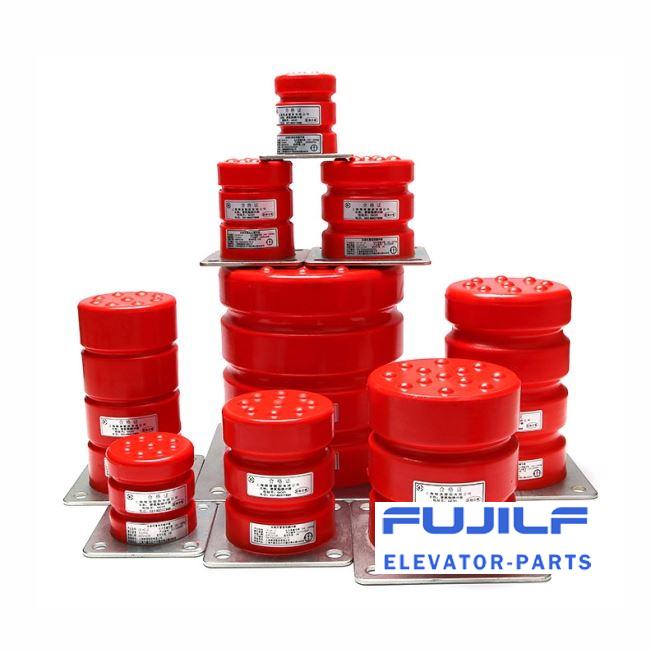

Elevator polyurethane buffer LD-HC-L1~L25.

New polyurethane material, no noise, small specific gravity, simple structure, easy installation and maintenance, good buffering effect,High-strength steel plate integrated base, stable and durable, four-hole fixing is easy to operate, Complete specifications, support customization.

Product parameter (specification)

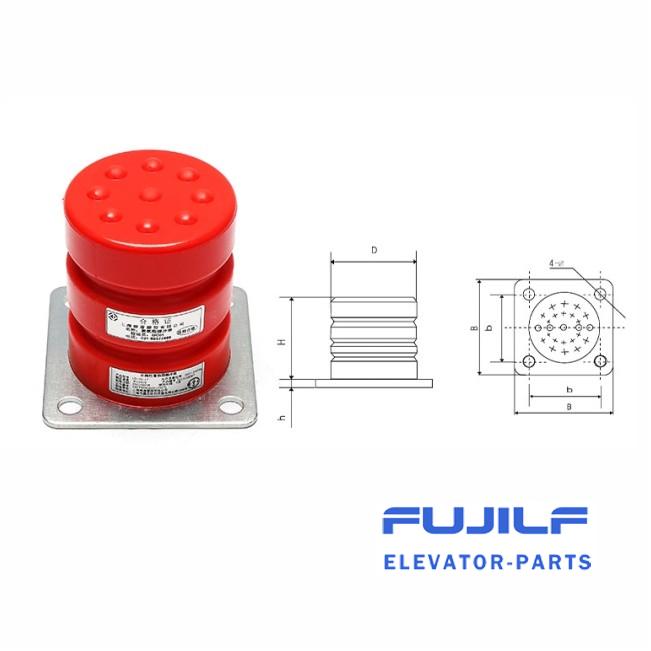

TYPE	Maximum compression stroke (mm)	Specification (φD*H)	total allowable massB*A (P+Q kg)	Installation size				Rated speed
FUJILF				B	b	h	∮	≤1.0m/S
LD-HC-L13	170	Φ130x 200	1000~4200	160	126	4	14	≤1.0m/S
LD-HC-L14	108	Φ140x 120	500~3000	160	126	4	14	≤1.0m/S
LD-HC-L15	162	Φ150x 180	1800~4000	160	156	4	14	≤1.0m/S
LD-HC-L16	199	Φ150x 240	1000~4500	200	156	4	14	≤1.0m/S
LD-HC-L17	184	Φ160x 200	1800~5800	200	156	4	14	≤1.0m/S
LD-HC-L18	144	Φ200x 160	1800~6000	246	196	4	16	≤1.0m/S
LD-HC-L19	173	Φ200x 200	1800~7500	246	196	4	16	≤1.0m/S
LD-HC-L20	198	Φ200x 200	1800~7800	246	196	4	16	≤1.0m/S
LD-HC-L21	225	Φ200x 250	1800~8000	246	196	4	16	≤1.0m/S
LD-HC-L22	180	Φ250x 200	2000~8000	320	250	4	18	≤1.0m/S
LD-HC-L23	220	Φ250x 250	2000~8200	320	250	4	18	≤1.0m/S
LD-HC-L24	299	Φ250x 320	2000~8500	320	250	6	18	≤1.0m/S
LD-HC-L25	230	Φ320x 250	2000~9000	400	315	6	22	≤1.0m/S
