| Name | HH-ARD-2P185-2 AC220V Elevator Automatic Rescue Device ARD FUJILF Lift Components |
| Product Type: | elevator component |
| Availability: | 6000pcs |
| Certificates: | ISO9001 |
| Warranty-Time: | 1 year |
| MOQ: | 1pcs |
| Payment: | TT |
| Delivery time: | 2-3 days after payment |
Product Description

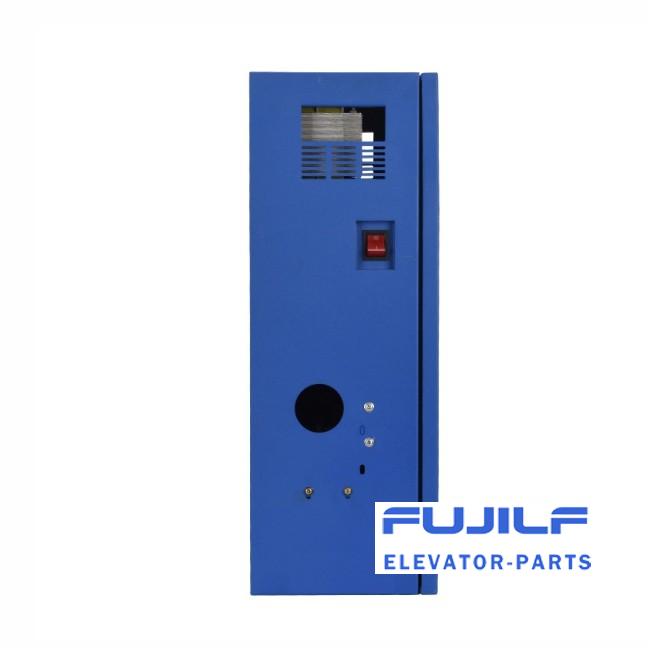

HH-ARD-2P185-2 AC220V Elevator Automatic Rescue Device ARD FUJILF Lift Components
Elevator ARD Elevator Automatic Rescue Device
· Short time overload current 200%
· Toroidal transformer voltage booster
· DeLay start if power failure, delay time can be adjust
· Selecting light load direction automatically before rescue
· Intelligent battery charge management function
· Fast dynamic response if load sudden changes
· Multiple stop mode can be selected
· Interlocking with inspection and manual power-off
· Over-voltage, under-voltage, over-current, battery protection
· Elevator minor failure automatic recovery function can be selected
Product parameter (specification)
| Model | Input Voltage | Output Voltage | Capacity | Adaptation Motor | Battery Pack | Weight | |
| HH-ARD-2P075-4 | 3 or Single phase AC380V 50/60HZ | Single phase AC380V 50HZ | 750 VA | 2.0A | Max. 7.5 KW | DC12V7AH *2 | 20kg |
| HH-ARD-2P110-4 | 900VA | 2.3A | Max. 11 KW | DC12V7AH *3 | 22kg | ||
| HH-ARD-2P150-4 | 1000VA | 2.6A | Max. 15 KW | DC12V9AH *3 | 23kg | ||
| HH-ARD-2P185-4 | 1300VA | 3.4A | Max. 18.5 KW | DC12V7AH *4 | 25kg | ||
| HH-ARD-2P220-4 | 1550VA | 4.0A | Max. 22 KW | DC12V9AH *4 | 26kg | ||
| HH-ARD-2P300-4 | 2100VA | 5.5A | Max. 30 KW | DC12V7AH *8 | 35kg | ||
| HH-ARD-2P075-2 | 3 or Single phase AC220V 50/60HZ | Single phase AC220V 50HZ | 750 VA | 3.3A | Max. 7.5 KW | DC12V7AH *2 | 20kg |
| HH-ARD-2P110-2 | 900VA | 5.7A | Max. 11 KW | DC12V7AH *3 | 22kg | ||
| HH-ARD-2P150-2 | 1000VA | 4.5A | Max. 15 KW | DC12V9AH *3 | 23kg | ||
| HH-ARD-2P185-2 | 1300VA | 5.8A | Max. 18.5 KW | DC12V7AH *4 | 25kg | ||
| HH-ARD-2P220-2 | 1550VA | 7A | Max. 22 KW | DC12V9AH *4 | 26kg | ||
1.The largest elevator parts company integrating warehousing with marketing.
2.Leading supplier and expoter in elevator parts industry.
3.We have various brands elevator parts,such as Kone,Otis,LG Sigma,Schindler,Toshiba,Thyssen and so on .
4.With the excellent after-saled service and warranty.
